Description

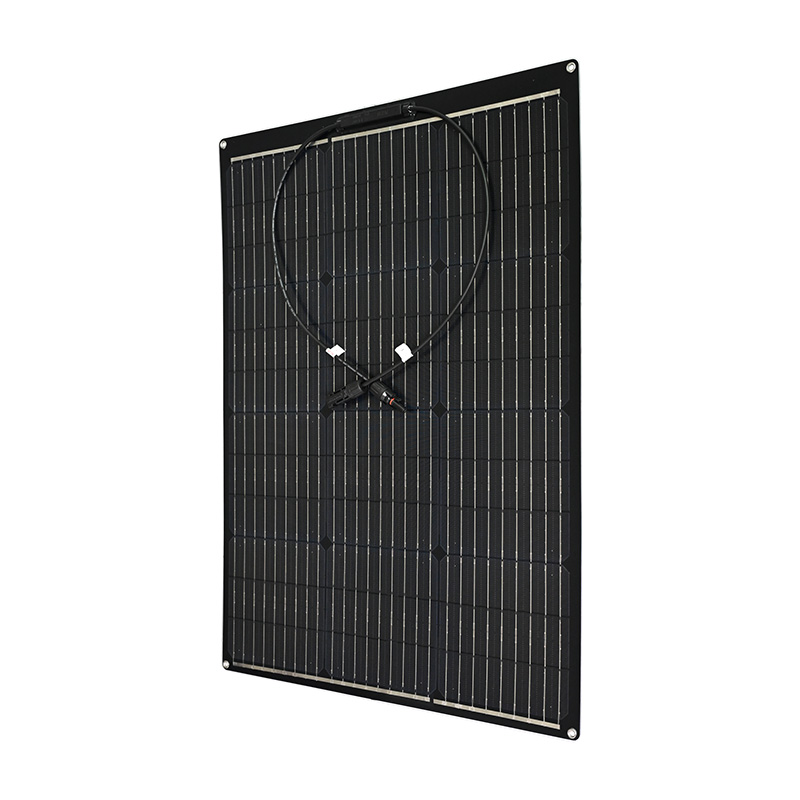

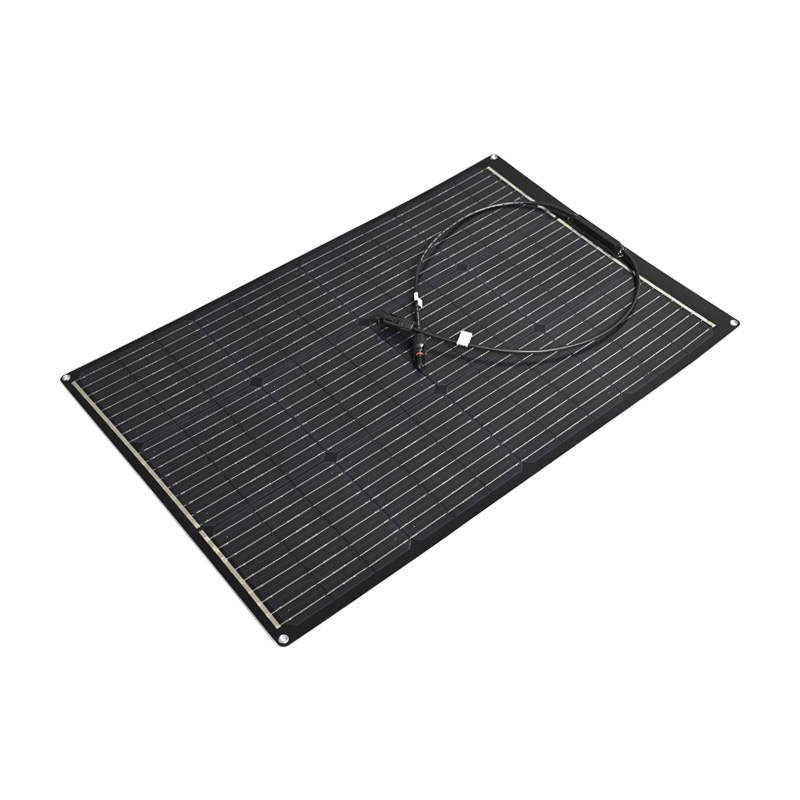

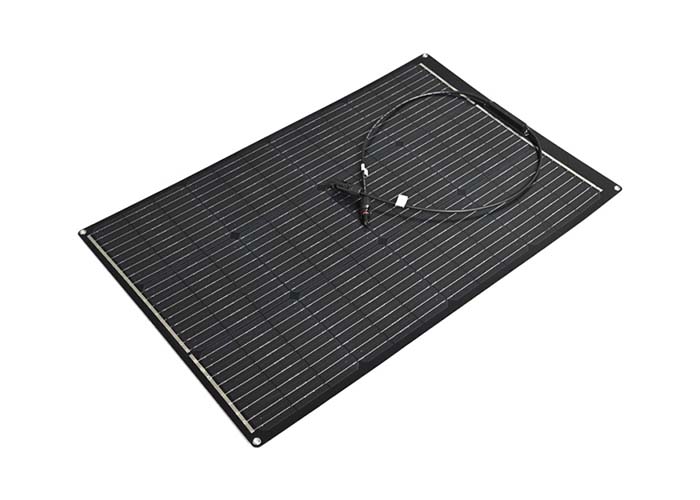

SUNGOLD 70W 12V Fiberglass Back Sheet Black Flexible Solar Panel, 166 Cells 22.62%+ Efficiency Monocrystalline Solar Cells for Camper, RV, Boat, Camping, Tent
1. Solar cells: Made of A-class 166 single crystal solar cells, which are more efficient (22.62%) and more durable than other single crystal solar cells.
2. Backplane: Durable fiberglass backplane with better heat dissipation and heat resistance to ensure long service life.
3. Installation: Can be fastened with adhesive, grommets, zippers or Velcro; can be installed without expensive roof structure reinforcement. The holes in the panel are pre-drilled for quick installation and fixing, ideal for non-permanent installations.

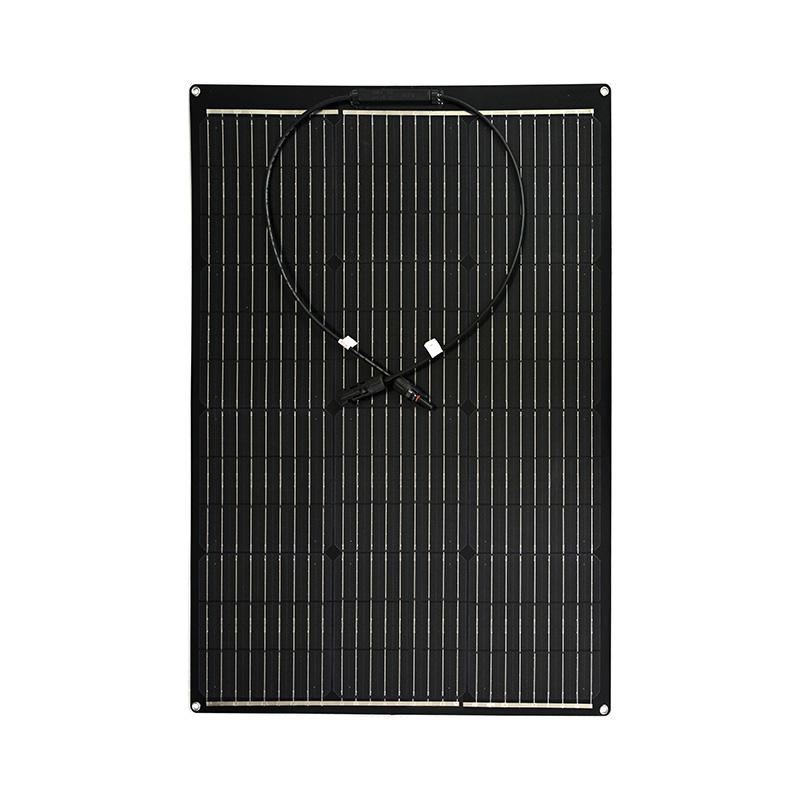

Black panel design
Double-sided black design, the conversion rate of monocrystalline cells is as high as 22.62%, which transmits more light than ordinary glass. With high aesthetic demands on the appearance and design of the installation, the black model is ideal for uniform coloured surfaces.
Flexible, ultra-light
Using TCPC lightweight polymer material panel, weight: 2.2KG/4.85lbs, the weight of this product is 70% lighter than traditional solar panels; size 745*530*14mm, 29.3*20.8*0.55(inch) installation . Makes transportation and installation a breeze.
Reliable Flexible Solar Panels
SUNGOLD 70W Black Flexible Solar Panel, for Camper, RV, Boat, Camping, Tent
| Maximum power(Pmax) | 70W |
| Open-circuit voltage(Voc) | 23.3V |
| Voltage at Pmax(Vmp) | 19.8V |
| Short-circuit current(Isc) | 5.45A |
| Current at Pmax(Imp) | 5.05A |
| Cells efficiency(%) | 21.10% |
| The maximum system voltage | 200V DC(IEC) |
| Power temperature coefficient | -0.38%/℃ |
| Voltage temperature coefficient | -0.36%/℃ |
| Current temperature coefficient | 0.07%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -20~75℃ |
| Solar cell | Monocrystalline solar cells |
| Weight | 2.5kg/4.85lb |
| Module dimension | 1080*540*3mm |
| No.of cells and connections | 12(3*4) |

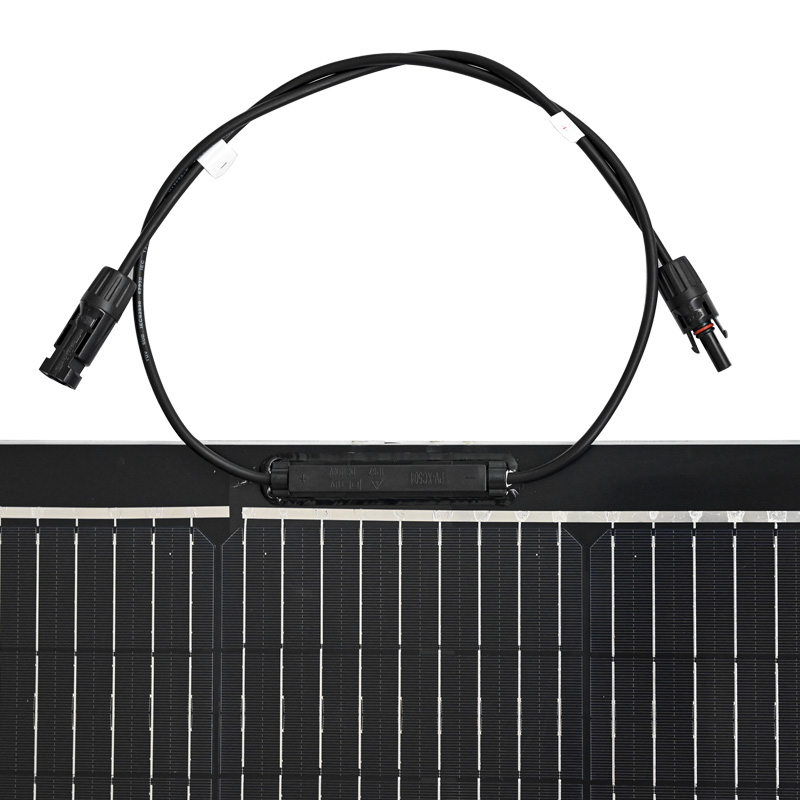

| Product configuration | A 10SQ050 diode; 500mm/2.5mm² photovoltaic single-core wire; MC4 connector |
| Packing | 1 piece into a bubble bag, 1 piece in 1 inner carton, 10 pcs in an inner carton and an outer carton |
Q:Are my panels weatherproof?
Yes, all solar technologyflexible solar panels are designed to be left outside all year-round, rain or shine. However, they are not designed to work underwater i.e. submerged.
Q:I have heard you can walk on the flexi panels is this true?
Yes this is true, but only if you have attached the panel to a solid surface with no voids, or holes, under the panel.
Q:How long should my panel last?
All flexible solar panel logic flexi panels are designed for longevity. All our flexi panels come with a two year product warranty.
SUNGOLD -The solar product portfolio ensures maximum flexibility to meet all your energy needs.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
